EJSS SHM model with e vs x graph

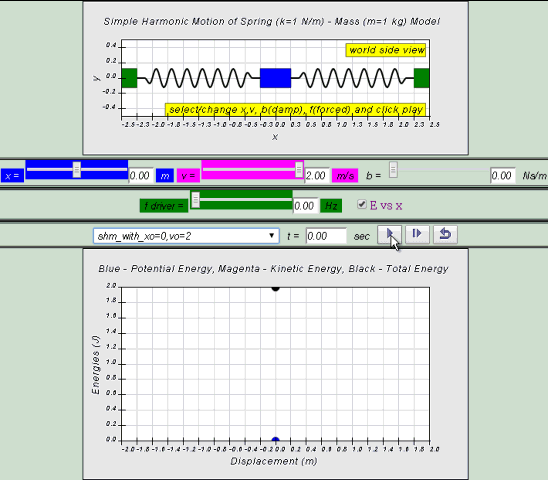

EJSS simple harmonic motion model with energy vs x graph showing elastic potential, kinetic and total energy
based on models and ideas by
http://weelookang.blogspot.sg/2014/02/ejss-shm-e-vs-x.html

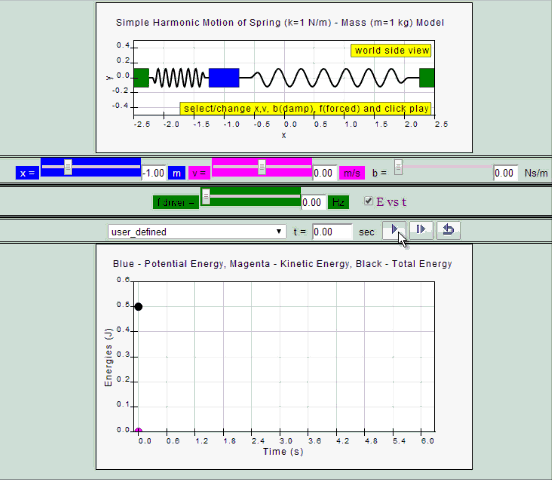

EJSS simple harmonic motion model with energy vs t graph showing elastic potential, kinetic and total energy
https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_model_SHMet/SHMet_Simulation.html
source: https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_src_SHMex.zip
author: lookang
author of EJSS 5.0 Francisco Esquembre
  1. lookang http://weelookang.blogspot.sg/2010/06/ejs-open-source-simple-harmonic-motion.html?q=SHM
  2. Wolfgang Christian and Francisco Esquembre http://www.opensourcephysics.org/items/detail.cfm?ID=13103
http://weelookang.blogspot.sg/2014/02/ejss-shm-e-vs-x.html
EJSS simple harmonic motion model with energy vs t graph showing elastic potential, kinetic and total energy
https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_model_SHMet/SHMet_Simulation.html
source: https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_src_SHMex.zip
author: lookang
author of EJSS 5.0 Francisco Esquembre

notes:

http://weelookang.blogspot.sg/2014/02/ejss-shm-e-vs-x.html
EJSS simple harmonic motion model with energy vs t graph showing elastic potential, kinetic and total energy
https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_model_SHMet/SHMet_Simulation.html
source: https://dl.dropboxusercontent.com/u/44365627/lookangEJSworkspace/export/ejss_src_SHMex.zip
author: lookang
author of EJSS 5.0 Francisco Esquembre


The equations that model the motion of the spring mass system are:

Mathematically, the restoring force F is given by


F=kx

where F  is the restoring elastic force exerted by the spring (in SI units: N), k is the spring constant (N·m−1), and x is the displacement from the equilibrium position (in m).

Thus, this model assumes

δxδt=vx


δvxδt=km(xl)bvxm+Asin(2πft)m

where the terms

km(xl) represents the restoring force component as a result of the spring extending and compressing.

bvxm represents the damping force component as a result of drag retarding the mass's motion.

+Asin(2πft)m represents the driving force component as a result of a external periodic force acting the mass m.

What is SHM?

Simple harmonic motion is typified by the motion of a mass on a spring when it is subject to the linear elastic restoring force given by Hooke's Law. The motion is sinusoidal in time and demonstrates a single resonant frequency. In order for simple harmonic motion to take place, the net force of the object at the end of the pendulum must be proportional to the displacement. In other words, oscillations are periodic variations in the value of a physical quantity about a central or equilibrium value.

Once the mass is displaced from its equilibrium position, it experiences a net restoring force. As a result, it accelerates and starts going back to the equilibrium position. When the mass moves closer to the equilibrium position, the restoring force decreases. At the equilibrium position, the net restoring force vanishes. However, at x = 0, the mass has momentum because of the impulse that the restoring force has imparted. Therefore, the mass continues past the equilibrium position, compressing the spring. A net restoring force then tends to slow it down, until its velocity reaches zero, whereby it will attempt to reach equilibrium position again.

As long as the system has no energy loss, the mass will continue to oscillate. Thus, simple harmonic motion is a type of periodic motion.


Energy of SHM:

Consider a spring of spring constant k connected to a mass m as shown.  When the mass is displaced from its equilibrium position by a distance xo and released, it will oscillate backwards and forwards

At the time of release, the energy of the system will consist totally of the spring’s potential energy. As the spring pulls the mass toward the equilibrium position, the potential energy is transformed into kinetic energy until at the equilibrium position the kinetic energy will reach a maximum. After the mass crosses the equilibrium position, the spring is compressed and the EP is converted to EK. Maximum PE occurs at maximum compression of spring.

The constant exchange between potential energy EP and kinetic energy EK is essential in producing oscillations. The total energy ET, which is the summation of kinetic and potential energy, will always add up to a constant value as shown.

Variation with time of energy in simple harmonic motion are as follows:

If motion starts at the equilibrium position and starts to move to the positive direction solutions to the defining equation are:

x=xosin(ωt)
motion starts at the equilibrium position and starts to move to the positive direction, defining equation follows  x=xosin(ωt)


v=xoωcos(ωt)

 motion starts at the equilibrium position and starts to move to the positive direction, defining equation follows v=xoωcos(ωt)



a=xoω2sin(ωt)
motion starts at the equilibrium position and starts to move to the positive direction, defining equation follows a=xoω2sin(ωt)



KE=12mv2=12mω2x2ocos2(ωt)

PE=12kx2=12mω2x2osin2(ωt)

TE=KE+PE=12mω2x2o
KE=12mv2=12mω2x2ocos2(ωt)

PE=12kx2=12mω2x2osin2(ωt)

TE=KE+PE=12mω2x2o



KE=12mv2=12mω2(x2ox2)

PE=12kx2=12mω2x2

TE=KE+PE=12mω2x2o
KE=12mv2=12mω2(x2ox2)
PE=12kx2=12mω2x2
TE=KE+PE=12mω2x2o





If the motion starts to the negative amplitude position:


x=xocos(ωt)=xosin(ωtπ2)

motion starts at the negative position and starts to move to the positive direction, defining equation follows x=xocos(ωt)=xosin(ωtπ2)

v=xoωsin(ωt)=xoωcos(ωtπ2)

motion starts at the negative position and starts to move to the positive direction, defining equation follows v=xoωsin(ωt)=xoωcos(ωtπ2)


a=xoω2cos(ωt)=xoω2sin(ωtπ2)

motion starts at the negative position and starts to move to the positive direction, defining equation follows a=xoω2cos(ωt)=xoω2sin(ωtπ2)


KE=12mv2=12mω2x2osin2(ωt)

PE=12kx2=12mω2x2ocos2(ωt)

TE=KE+PE=12mω2x2o

KE=12mv2=12mω2x2osin2(ωt)

PE=12kx2=12mω2x2ocos2(ωt)

TE=KE+PE=12mω2x2o




therefore , in general:

x=xosin(ωtϕ)


v=xoωcos(ωtϕ)

a=xoω2sin(ωtϕ)


KE=12mv2=12mω2x2ocos2(ωtϕ)

PE=12kx2=12mω2x2osin2(ωtϕ)

TE=KE+PE=12mω2x2o

KE=12mv2=12mω2(x2ox2)

PE=12kx2=12mω2x2

TE=KE+PE=12mω2x2o
