About this Simulation

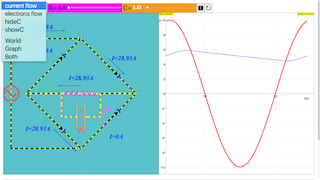

This simulation models a half wave rectifier circuit, demonstrating how a diode converts alternating current (AC) into pulsating direct current (DC). Learners can observe real-time voltage waveforms, analyze the effect of the diode's one-way conductivity, and explore how rectification occurs across a load resistor during each cycle.

Learning objectives: Understand how diodes rectify AC signals into DC current | Analyze voltage and current characteristics before and after rectification | Predict and observe the relationship between input AC frequency and output DC pulsation
