SHM21

1.6.4 Applications of Critical Damping

Factors that affects the damping coefficient b includes the drag in the oscillating spring-mass system that takes energy out of the system as heat loss etc.

therefore, the higher the viscosity of the medium the system is in, the greater the drag coefficient b.

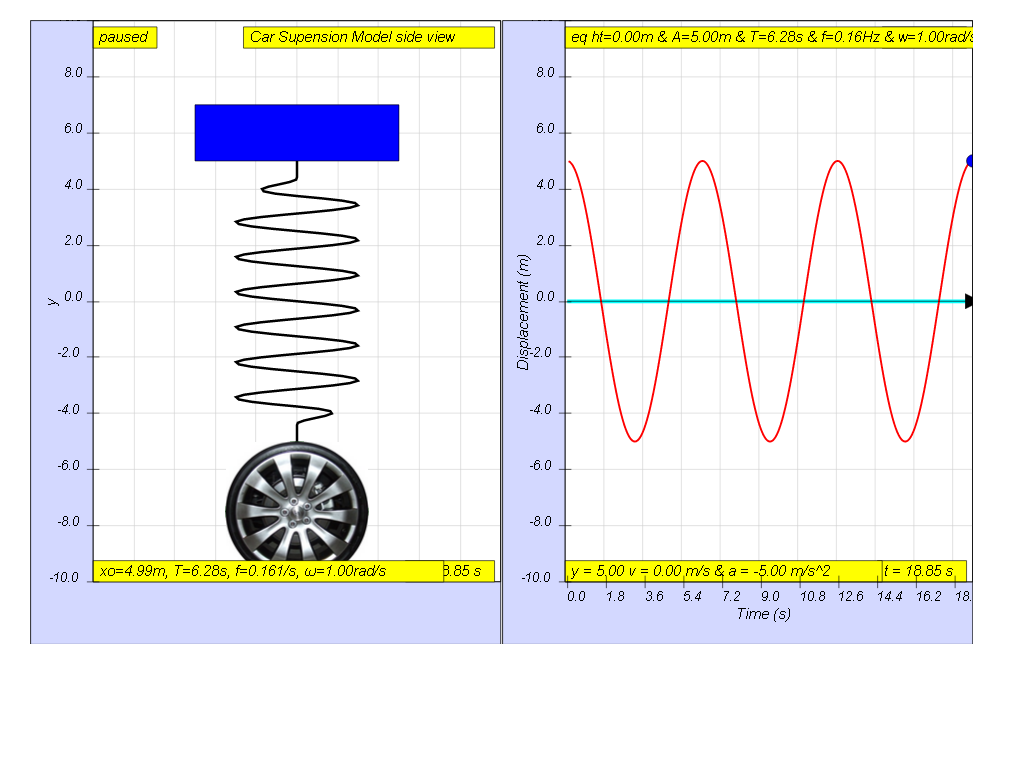

1.6.4.1    Car suspension


    The spring of a car’s suspension is critically damped so that when a     car goes over a bump, the passenger in the car quickly and smoothly     regains equilibrium.





1.6.4.1.1 No Damping

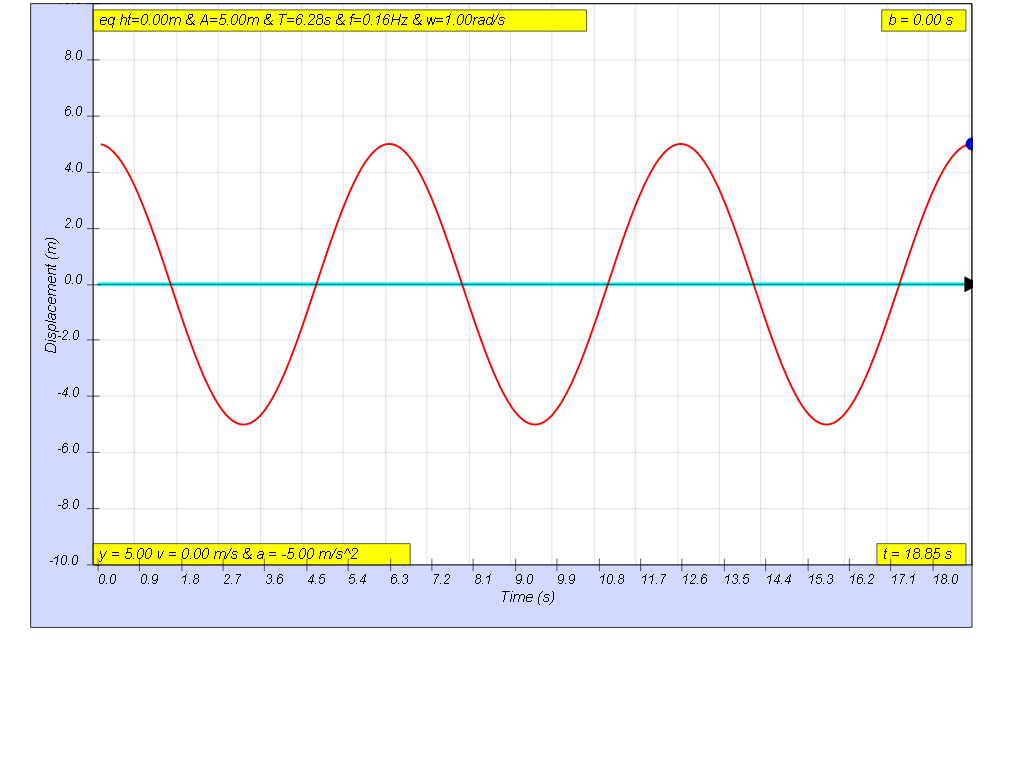

the picture shows no damping case b = 0


1.6.4.1.2 Light Damping

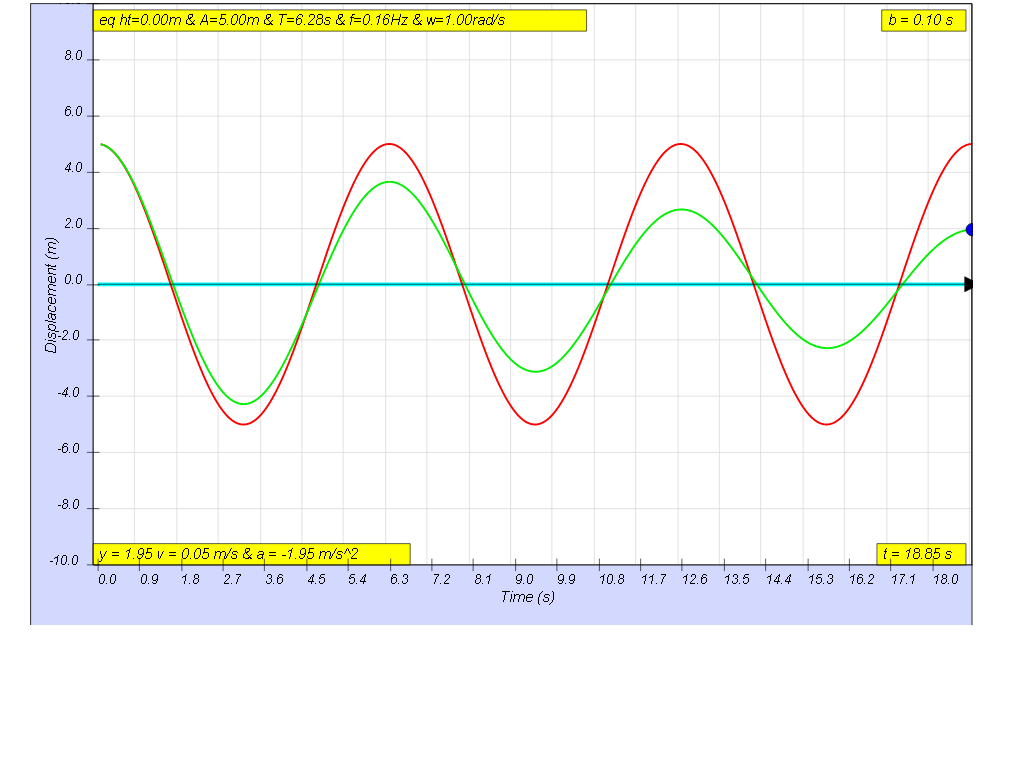

the picture shows light damping case b = 0.1


1.6.4.1.3 Critical Damping

the picture shows critically damping case b = 2.0
However, car suspensions are often adjusted to slightly under critical damped condition to give a more comfortable ride. Critical damping also leaves the car ready to respond to further bumps in the road quickly.



1.6.4.1.4 Heavy Damping

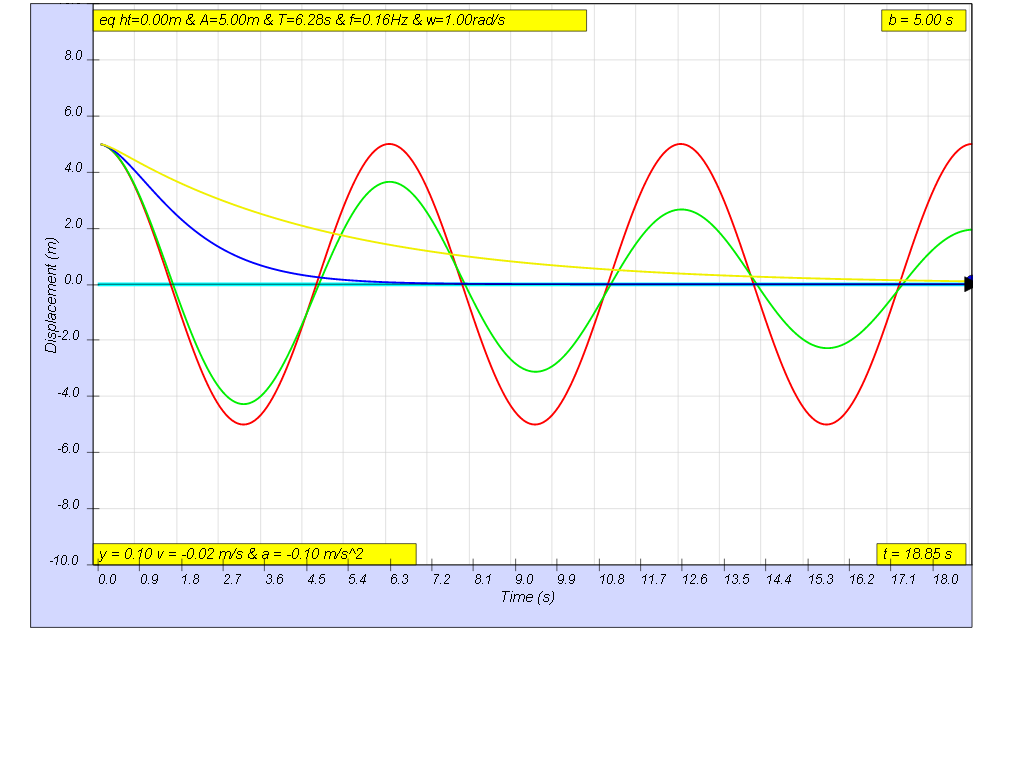

the picture shows heavy damping case b = 5.0

1.6.4.1.5 Model:

  1. Run Sim
  2. http://iwant2study.org/ospsg/index.php/85
