Example 2: Spring-mass system

1.2.11 Example: Spring-mass system

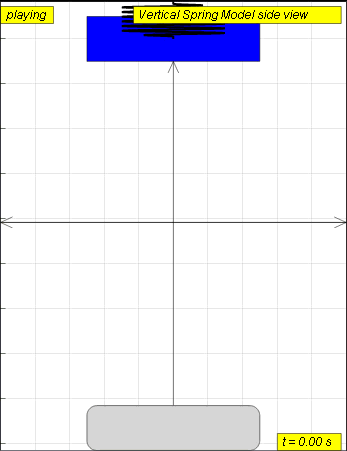

A mass suspended from a spring, displaced vertically and released to move freely to produce up and down motion

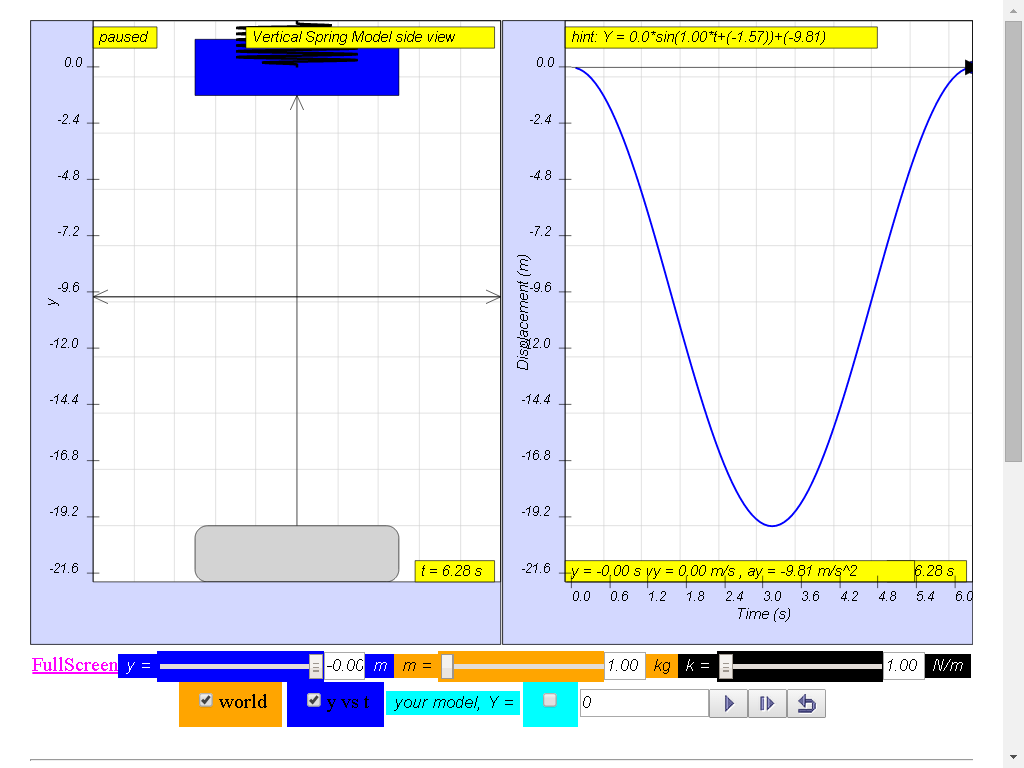

The model view of a mass suspended from a spring, displaced vertically and released to move freely to produce up and down motion with right panel showing the displacement, velocity and acceleration.

Q1: under what conditions would this vertical spring mass system’s motion be not well modeled as a simple harmonic motion?


H1: the model assumes the restoring force by the spring is F = -ky, it is always correct for any magnitude of oscillation y in real springs. Is it always valid in the real spring motion when the spring is hyper extending beyond the linear limits of Hooke's Law ?

Q2: change the simulation y=0 m and Play the model. In the your model Y = _________, suggest your own suitable model that can describe the motion y.

Q3: in this same motion, propose the velocity and acceleration model(s)

Q4: carry out some other conditions, verify that the general equations for displacments if can be model by Y = Y0sin(ωt+φ)+Yshift where the usual symbols have the usual meaning. Hence or otherwise, Suggest with reasons, the meaning of Y0 , ω , φ , and Yshift.

Q5: similarly, suggest whether the model(s) for velocity, vY =ωY0cos(ωt+φ) and

aY = - ω2Y0sin(ωt+φ). Test them out using an example of your choice.
