gravity08_1

7.4.3 Energy of a Satellite in circular orbit in terms of distance from Earth, r

A satellite in orbit possesses kinetic energy, KE, (by virtue of its speed motion) and

gravitational potential energy, PE, (by virtue of its position within the Earth’s gravitational field).

Hence, total energy of a satellite,

TE = PE + KE


   T E = ( m ) ( - G M r ) + 1 2 m v 2    --- Equation (1)

Recall that for a satellite in circular orbit, its gravitational force  F = G M 1 M 2 r 2 acts as the centripetal force:
    ΣF =  ma

G m M r 2 = m v 2 r

simplifying and multiply by

G m M 2 r = 1 2 m v 2 = K E--- Equation (2)


Substituting equation (2) into (1),
Hence total energy of a satellite, TE = PE + KE


T E = ( m ) ( - G M r ) + G m M 2 r = - G m M 2 r



A typical graph showing the relationship between PE, KE and TE with respect to the distance, r, from centre of Earth, O, is as shown.

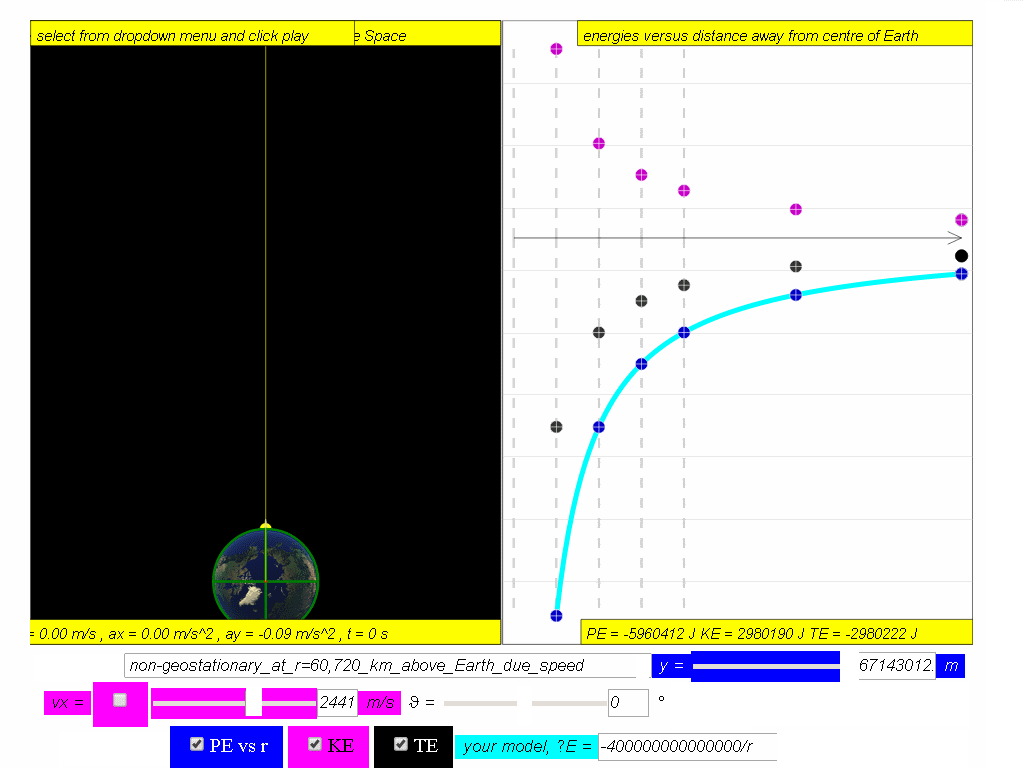

Assuming mass of object mobject = 1kg,  Mass of Earth Mearth = 6.0x1024 kg, G =6.67x10-11 N m2 kg-2 , The potential energy PE = P E = - G m M r = 6.67 x 1 0 -11 ( 1 ) ( 6.0 x 1 0 24 ) r = - 4 x 1 0 14 r

Similarly, determine the equation/model that describes KE and TE and key them into the simulation to test your understanding

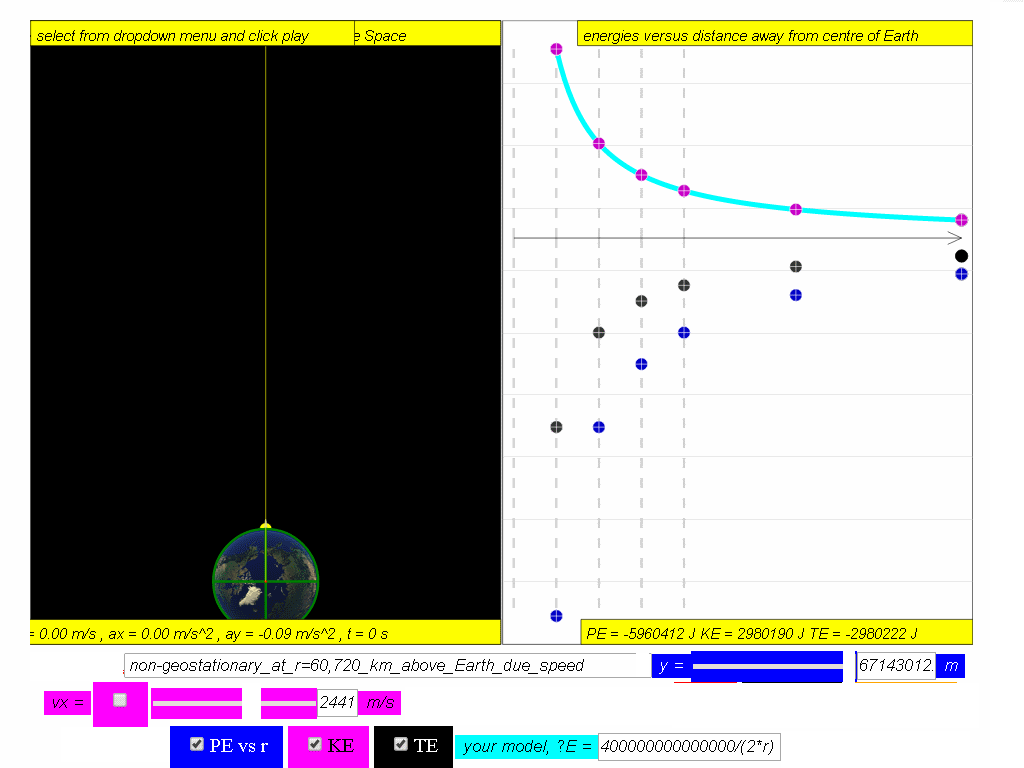

K E = G m M 2 r = 6.67 x 1 0 -11 ( 1 ) ( 6.0 x 1 0 24 ) 2 r = 4 x 1 0 14 2 * r

T E = - G m M 2 r = - 6.67 x 1 0 -11 ( 1 ) ( 6.0 x 1 0 24 ) 2 r = - 4 x 1 0 14 2 * r

7.4.3.1 Model:

  1. Run Sim
  2. http://iwant2study.org/ospsg/index.php/285


Translations

Code Language Translator Run

Software Requirements

SoftwareRequirements


Android iOS Windows MacOS
with best with Chrome Chrome Chrome Chrome
support full-screen? Yes. Chrome/Opera No. Firefox/ Samsung Internet Not yet Yes Yes
cannot work on some mobile browser that don't understand JavaScript such as.....
cannot work on Internet Explorer 9 and below



Credits

Todd Timberlake, this remixed version is by lookang (This email address is being protected from spambots. You need JavaScript enabled to view it.); lookang; fu-kwun hwang
